Prescription of 280 mm CA F/4.2 - F/20.24 Maksutov telescope
|
|
|
|
Symbol
|
Definition
|
mm or F/ratio
|
CA
|
Clear Aperture of corrector lens Hayward BSC2 Cat# 517645
|
279.40
|
BA
|
Back Aperture of corrector lens Hayward BSC2 Cat# 517645
|
285.75
|
Tc
|
Thickness of corrector lens
|
29.34
|
Dm
|
Diameter of primary mirror
|
304.80
|
Tm
|
Thickness of primary mirror
|
50.80
|
Dh
|
Diameter of central hole in primary
|
50.80
|
Ds
|
Diameter of secondary mirror
|
73.15
|
R1
|
Radius of curvature of 1st lens surface
|
-434.19
|
R2
|
Radius of curvature of 2nd lens surface
|
-450.77
|
R3
|
Radius of curvature of primary mirror
|
-2,400.94
|
R4
|
Radius of curvature of secondary mirror (Cassegrain focus)
|
-640.89
|
F
|
Distance from primary mirror to prime focus
|
1,224.94
|
S
|
Separation of corrector lens and primary mirror
|
1,275.89
|
SD
|
Separation between prime focus and Cass secondary surface
|
254.00
|
BD
|
Distance from primary mirror surface to Cassegrain focus
|
254.00
|
BFL
|
Back Focal Length
|
1,224.94
|
EFL_prim
|
Effective Focal Length (prime focus/Newtonian)
|
1,173.48
|
EF/ratio_prim
|
Effective F/ratio (prime focus/Newtonian)
|
4.20
|
EFL_cass
|
Effective Focal Length (Cassegrain)
|
5,654.04
|
EF/ratio_cass
|
Effective F/ratio (Cassegrain)
|
20.24
|
|
|
|
|

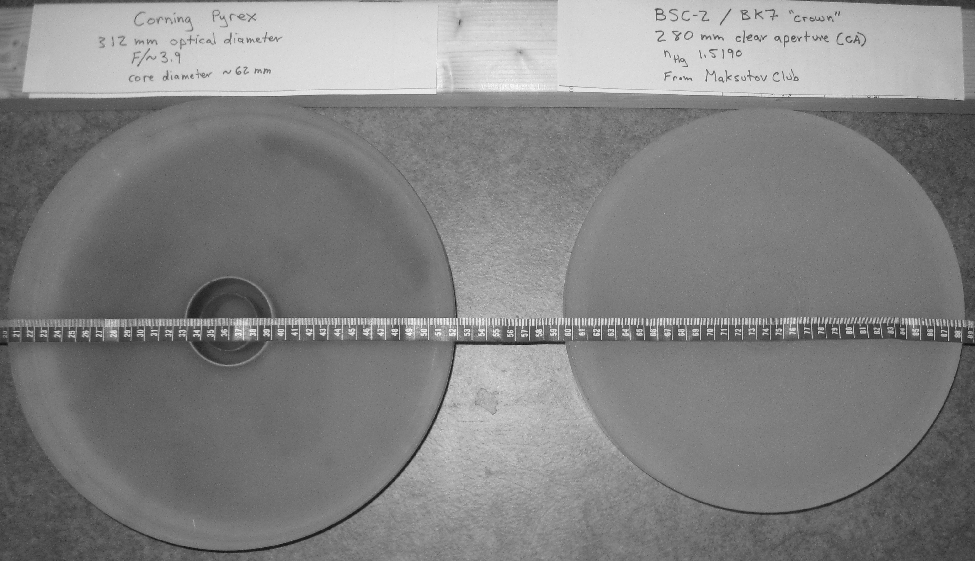

Corrector meniscus: Hayward Scientific BSC2: nD 1.517645; vD 64.5
|
|
nC (red) 1.51462; nF (blue) 1.52264
|
|
|
Glass type deduced from Mak Club circular No. 60 RI values
|
|
|

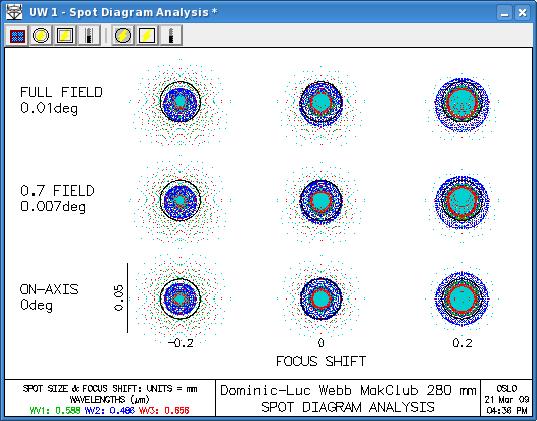

used for ray tracing studies
|
|
